Project Description

COB LED Strip Light

Chip on board (COB) or Flip Chip on board (FCOB) is a manufacturing method in which the chip is wired and directly bonded to the printed circuit board. This allows a dense arrangement of chips close to each other. If your would like to know how to make the flip chip on board/COB LED strip lighting, please Click Here.

Compared with SMD technology, which can only package 1-3 chips on the nano sapphire and gallium crystal substrate, COB can put more chips on the circuit board in the same space to provide more lumens and higher uniformity. LED light strips have been using SMD technology beads until 2019, such as SMD2835, SMD5050, SMD5630, etc. These light beads fix the lamp beads on the FPCB through SMT technology. However, even with the smallest lamp beads and the densest design, it can’t solve the problem of lighting spot. Now the fcob led strip lights solve that problem and output the truly dotless and continuous linear lighting.

Difference Between SMD and COB LED Strip Light

Flip Chip On Board LED Strip Lighting Advantage:

:: Turly dotless & continuous, ideal for linear and indirect lighting
:: 180° beam angle, wider lighting distribution than 120° SMD LED beads.
:: Super perfect color unifomity, soft and cozy lighting without glare.
:: 12/24Vdc design available.
:: Constant current IC version available for same brightness between two ends.

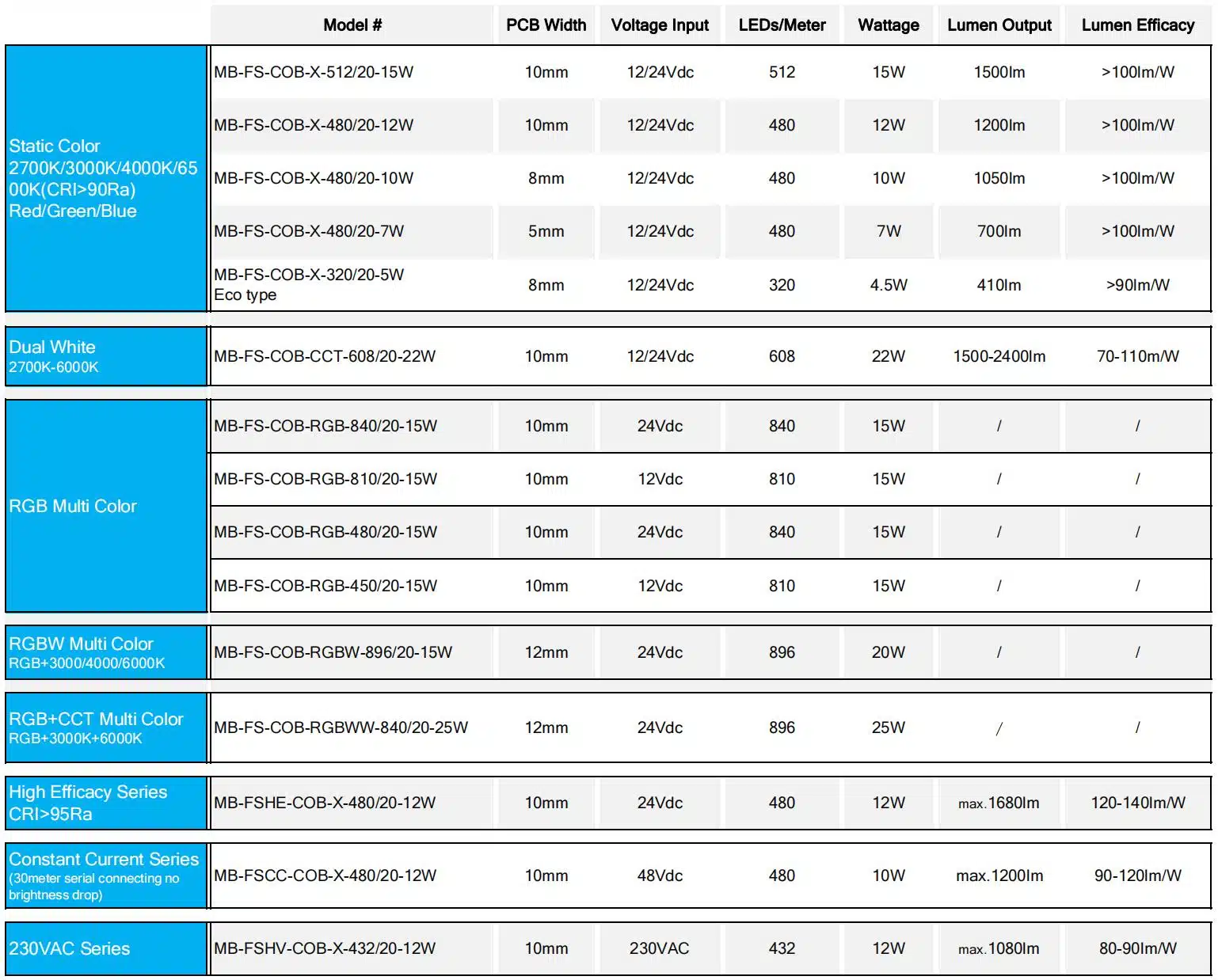

COB LED Strip Light – static color, dual white, RGB and RGBW color

led strip cob rgb rgbw

dotless cob led strip installed in the furniture

TECHNICAL DATA
Product Product Name COB LED Strip Light
Model No. MB-FS-COB-X-512/20-15W
Manufactured by Maxblue Lighting
LED Lifetime 30000Hrs
Warranty 3 years
Electrical Spec Max. Wattage 15W/M. 10W/M available on request
Working Voltage DC24V
Max. Current/M 0.625A
Lighting Spec LED Type COB
CHIP Brand EPISTAR/SANAN
LED Chip Size 9*22mil
LED Q’ty/Meter 512 chips/M
Color R, G, B, Y.
Color Temperature / CCT 2700K,3000K, 4000 and 6000K
Color Rendering Index / CRI >82Ra, >90Ra
Luminous Output [email protected] >90Ra
Light Efficiency 95-105lm/w
Energy Efficiency Class A+
Beam Angle 180°
Dimmable Yes, by PWM
Dimension Standard Length 5 Meter
PCB Width 10mm. 8mm width available on request
Height 2mm
Cuttable Unit 31.25 mm
Others Install 3M Adhensive Tape
Standard Cable Length 15cm red/black at one side
Package 5M Per Anti-static foil bag
IP Rating IP20. IP65/IP67/IP68 available on request
OEM/ODM Available (different size, wattage, color/cct, cable)
Environment Operating Temperature -25°C~45°C
Storage Temperature -30°C~60°C
Environment Humidity 40-70% RH

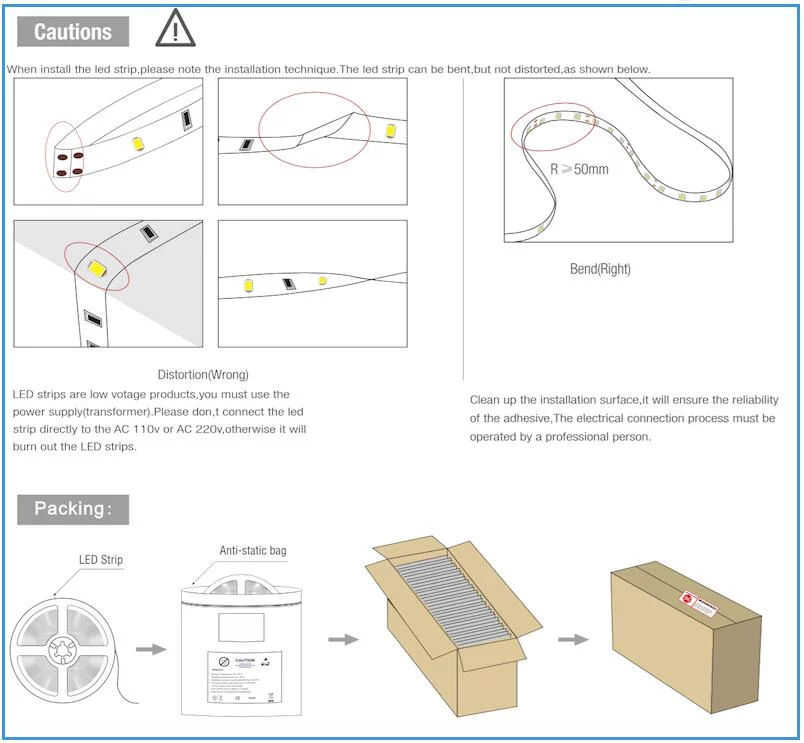

INSTALLATION CAUTIONS AND PACKING:

APPLICATIONS:

  • Home furnishing lighting
  • Commercial lighting
  • Linear lighting
  • Office lighting
  • Shopping center lighting
  • Any simplicity lighting design

datasheet download: 320LEDs COB LED STRIP Light Data Sheet – Maxblue Lighting.pdf
